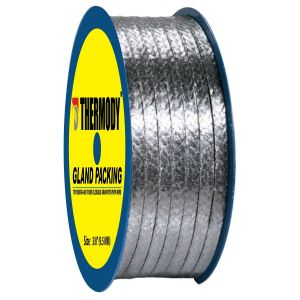

ปะเก็นเชือก GLAND PACKING TM1600FG+INC PURE FLEXIBLE GRAPHITE WITH WIRE

STYLE 1600inc is proven as the ultimate product for maximum leakage control and a multi- purpose packing that is compatible with virtually most Of the industrial fluids. Because Of its outstanding moldability, Style 16000inc substitutes advantageously the traditional die-formed graphite rings and majority of the man-made fibers filament braided packing.

THERMODYTM STYLE 1600inc is constructed from pure expanded mineral graphite twisted yarn with multiple Inconel wires reinforced in each yarn. Braided inner core of multiple wires reinforced provides outstanding sealing performance and high-pressure resistance. External jacket braided from pure expanded mineral graphite nonmetallic twisted yarn, treated with inhibitor and a blocking agent, avoids all contacts between the reinforced inner core and the valve stern. No possibility of stem wear.

Applications:

STYLE 1600inc is designed for service and handling in petrochemicals, hydrocarbons, corrosives in refineries, power plants, pulp and paper mills, and other industries in the hostile environments where effective sealing is vital.

Thermody  Style 1600inc will adapt itself to all stuffing box irregularities, thus assuring a perfect, revolutionary seal ability even on old valves. It will not harden, become brittle or cold flow in service or on the shelf.

It has nothing to leach or squeeze out.













More Information
น้ำหนัก/หน่วย (กก.)1.0000
Application หรือ MEDIA ที่เหมาะกับการใช้งานใช้งานdesigned for service and handling in petrochemicals, hydrocarbons, corrosives in refineries, power plants, pulp and paper mills, and other industries in the hostile environments where effective sealing is vital.
Temperature Range Max °C600
หน่วยปอนด์ Pound
แบรนด์THERMODY
หน่วยปอนด์
ความกว้าง(มม)12.7 (1/2")
วัสดุ(Material)Graphite
TypeTM1600FG+INC
Write Your Own Review
You're reviewing: GLAND PACKING TM1600FG+INC PURE FLEXIBLE GRAPHITE WITH WIRE 1/2 INCH
Your Rating
มีสินค้า
SKU
PK-GP-0063
฿750.00

GLAND PACKING TM1600FG+INC PURE FLEXIBLE GRAPHITE WITH WIRE 1/2 INCH

**ราคาต่อ 1 ปอนด์ (Price / Pound)**
